Floor Plan
30
32
34
36
38
38 - Alt Guest Room
38 - Rear Living Reverse
38 - Bed 1 to Rear
40
42
44

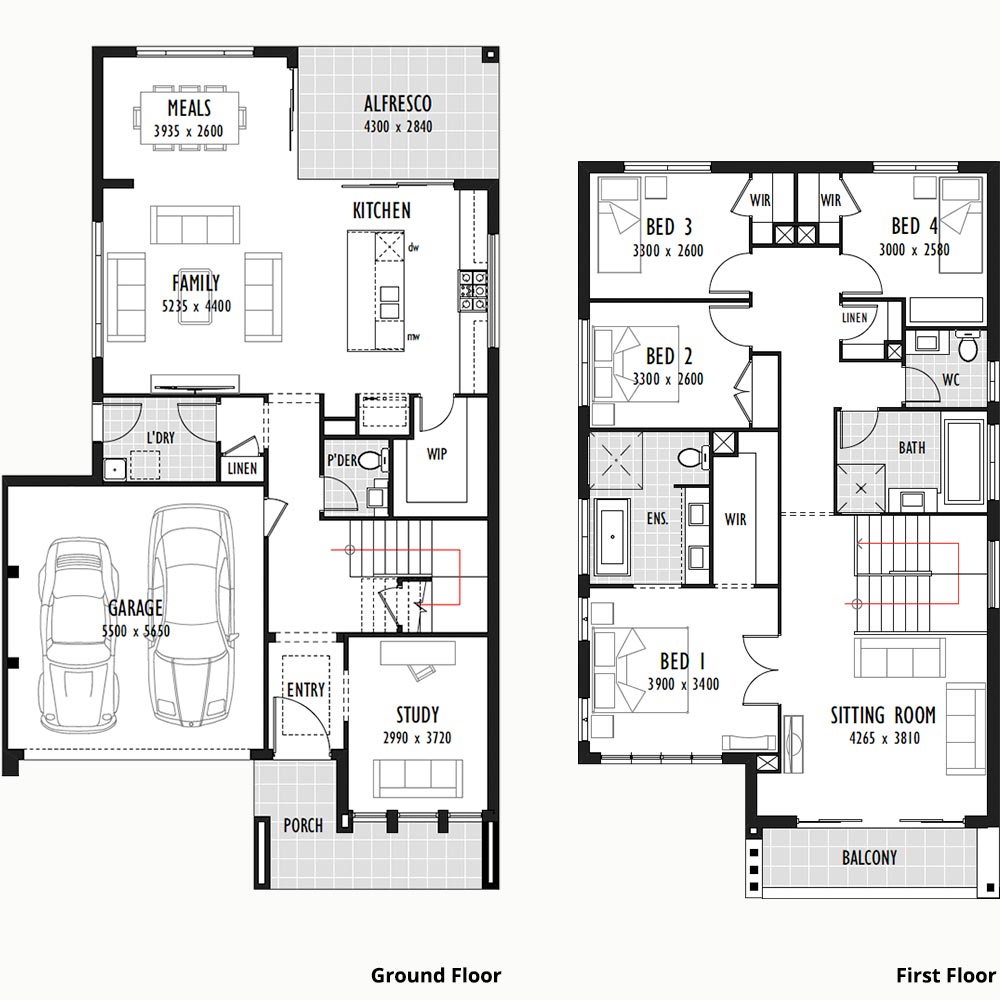

Brookfield 30
4 3 2
Ground Floor 104.20 m²
First Floor 115.52 m²
Garage 33.55 m²
Alfresco 12.21 m²
Porch 9.72 m²
Balcony 7.56 m²
Total 282.76 m² /30.44 sq
Width 10.635 m
Depth 18.06 m
Brookfield 32
5 3 2
Ground Floor 113.48 m²
First Floor 121.50 m²
Garage 33.44 m²
Alfresco 12.21 m²
Porch 9.57 m²
Balcony 7.56 m²
Total 297.76 m² /32.05 sq
Width 11.595 m
Depth 18.06 m

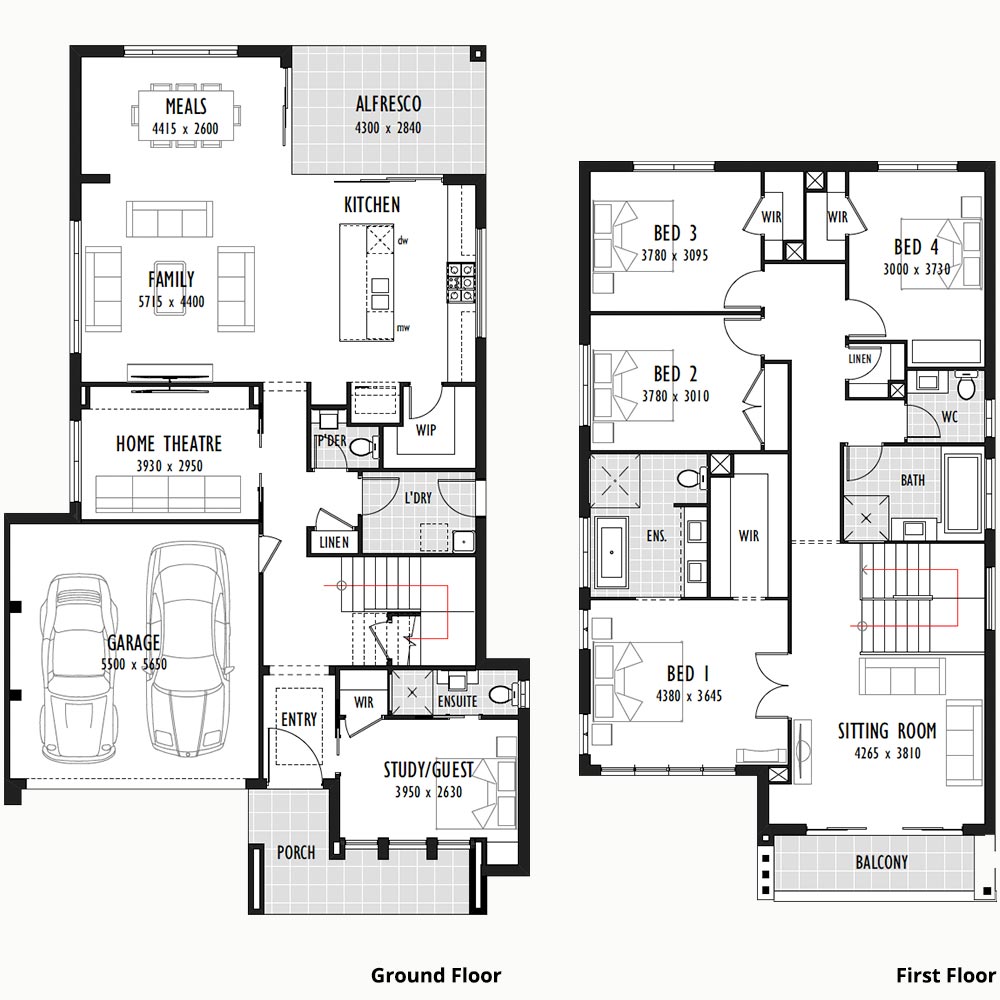

Brookfield 34
5 3 2
Ground Floor 124.01 m²
First Floor 132.07 m²
Garage 33.44 m²
Alfresco 12.21 m²
Porch 9.57 m²
Balcony 7.56 m²
Total 318.90 m² /34.33 sq
Width 11.595 m
Depth 19.210 m
Brookfield 36
5 3 2
Ground Floor 132.13 m²
First Floor 138.52 m²
Garage 33.44 m²
Alfresco 13.24 m²
Porch 9.90 m²
Balcony 7.73 m²
Total 334.96 m² /36.06 sq
Width 11.715 m
Depth 19.950 m
Brookfield 38
5 3 2
On Display
Ground Floor 141.04 m²
First Floor 144.90 m²
Garage 33.45 m²
Alfresco 14.79 m²
Porch 10.23 m²
Balcony 7.91 m²
Total 352.32 m² /37.92 sq
Width 11.835 m
Depth 20.790 m
Brookfield 38 - Alt Guest Room
5 3 2
Ground Floor 141.71 m²
First Floor 144.90 m²
Garage 33.11 m²
Alfresco 14.79 m²
Porch 10.38 m²
Balcony 7.91 m²
Total 352.80 m² /37.98 sq
Width 10.875 m
Depth 20.790 m
Brookfield 38 - Rear Living Reverse
5 3 2
Ground Floor 140.04 m²
First Floor 144.90 m²
Garage 33.45 m²
Alfresco 14.79 m²
Porch 10.23 m²
Balcony 7.91 m²
Total 352.32 m² /37.92 sq
Width 11.835 m
Depth 20.790 m

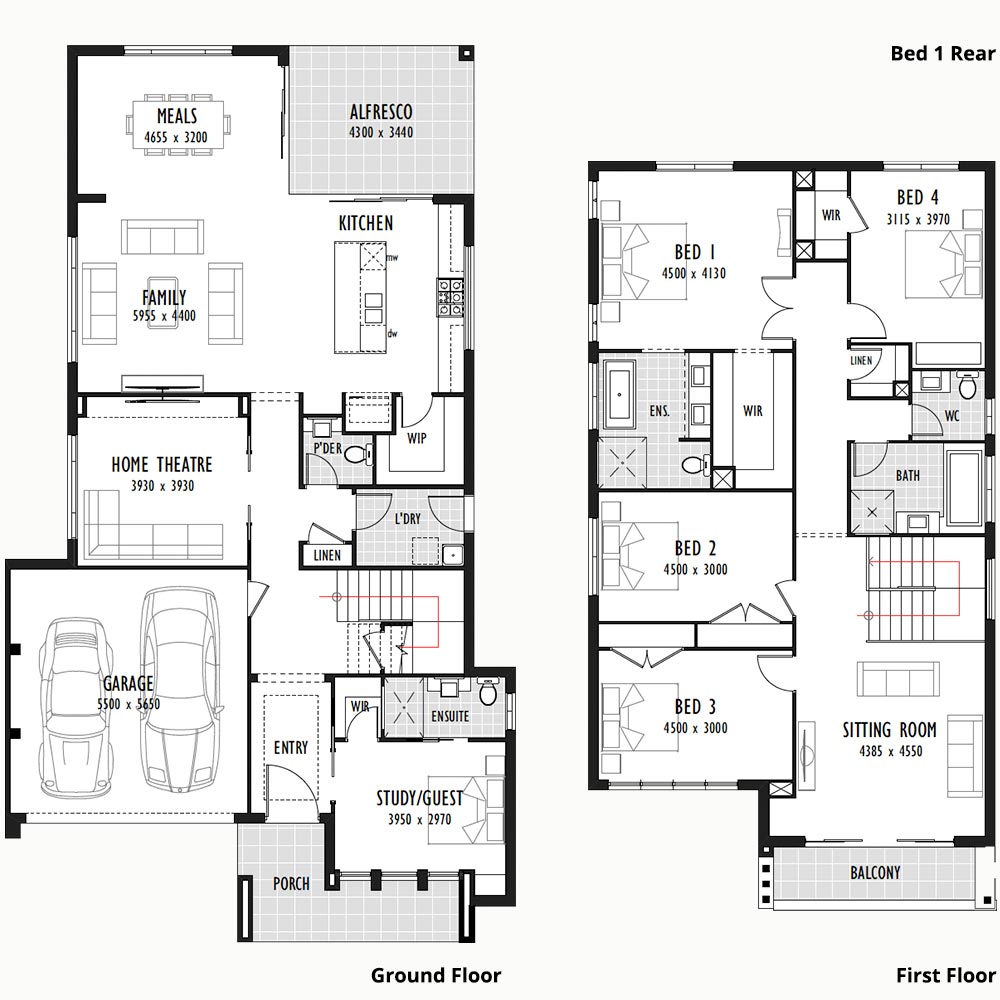

Brookfield 38 - Bed 1 to Rear
5 3 2
Ground Floor 140.04 m²
First Floor 144.90 m²
Garage 33.45 m²
Alfresco 14.79 m²
Porch 10.23 m²
Balcony 7.91 m²
Total 352.32 m² /37.92 sq
Width 11.835 m
Depth 20.790 m

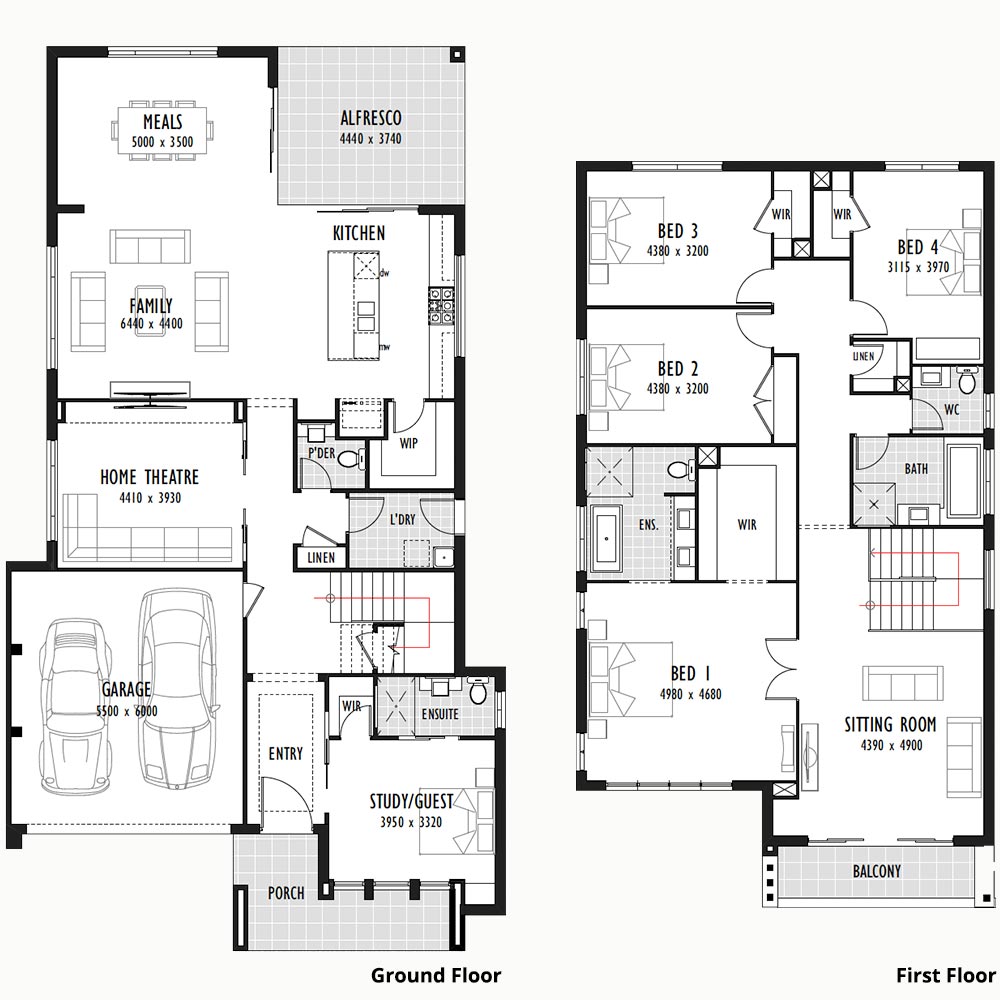

Brookfield 40
5 3 2
Ground Floor 150.20 m²
First Floor 155.46 m²
Garage 35.30 m²
Alfresco 16.61 m²
Porch 10.25 m²
Balcony 7.91 m²
Total 375.72 m² /40.45 sq
Width 11.840 m
Depth 21.440 m

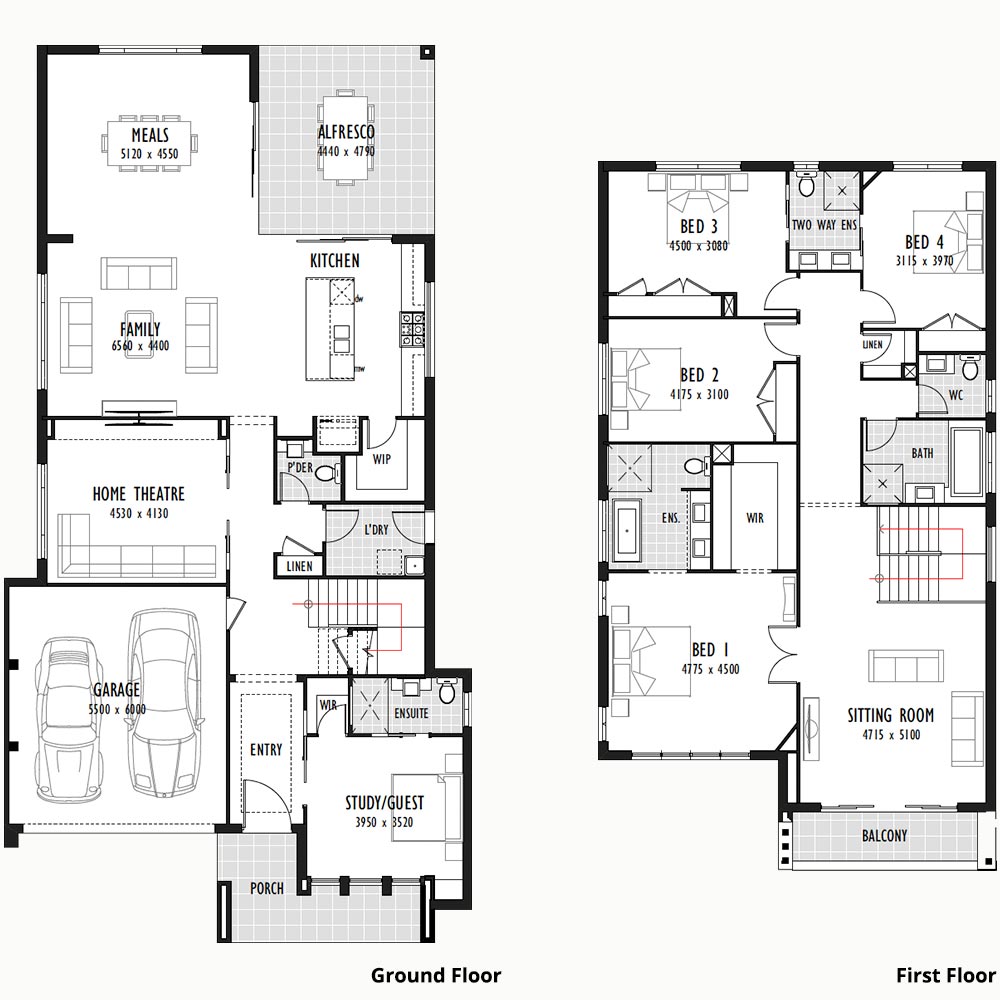

Brookfield 42
5 3 2
Ground Floor 159.58 m²
First Floor 159.26 m²
Garage 35.27 m²
Alfresco 21.27 m²
Porch 10.23 m²
Balcony 7.91 m²
Total 393.52 m² /42.36 sq
Width 11.840 m
Depth 22.690 m
Brookfield 44
5 3 2
Ground Floor 165.80 m²
First Floor 168.28 m²
Garage 38.79 m²
Alfresco 19.71 m²
Porch 10.25 m²
Balcony 7.91 m²
Total 410.74 m² /44.21 sq
Width 11.840 m
Depth 23.435 m
